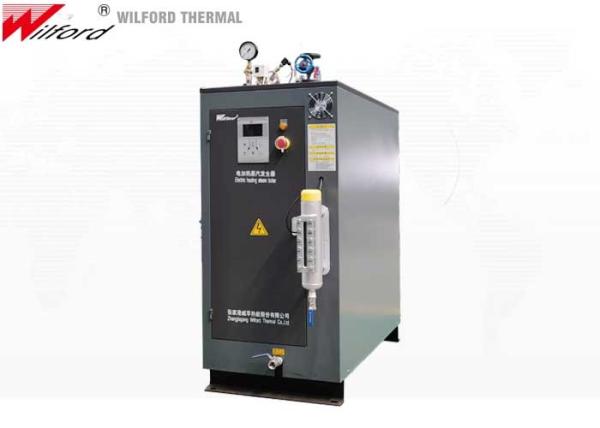

0.15t/H Electric Steam Generator Boiler Furnace For Steam Ironing

Name: 015tH Electric Steam Generator Boiler Furnace For Steam Ironing
Brand: WILFORD
Price: 1 USD

China 0.15t/H Electric Steam Generator Boiler Furnace For Steam Ironing wholesale

Brand Name : WILFORD

Model Number : WFD

Certification : CE,ISO,ISO9001

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 25 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Packing in wooden box

Rated steam capacity : 0.15-1.2T/h

Rated Working Pressure : 0.7Mpa

Staturated steam temperature : 170℃

Input Power : 108-864KW

Rated Voltage : 380V

Output : Steam

Usage : Industrial,swimming pool,home&industrial heating,Steam Outputing

Structure : electric heating tube

After-sales service provided : Engineers available to service machinery overseas

Warranty : 1 Year

Thermal efficiency : 98%

Contact Now

Fully Automatic Industrial Electric Steam Boiler For Steam Ironing In Garment Factories

Electric Steam Boiler Product introduction

Industrial steam boiler adopt safety furnace liner structure, built-in high-efficiency steam-water separation device.

Use European heating tube, Incoloy800 stainless steel material (performance far exceeds 316L material) has strong anti-scale and corrosion resistance.Adopting French Schneider contactor, high efficiency, sensitive action, long life and low noise.

Full automatic operation mode, simple operation, boiler start-up amd stop quickly. operating load adjustment range, applicable to various working conditions.

Each group of electric heating element is connected with concentrated bundle flange, independent setting, high mechanical strength, safe and reliable. Easy to replace and long service life.

Electric Steam Boiler Parameter

WFD Electrical Steam Boiler
Type			WDR0.15-0.7	WDR0.2-0.7	WFD0.4-0.7	WFD0.6-0.7	WFD0.8-0.7	WFD1.0-0.7	WFD1.2-0.7
Project		Unit	WDR0.15-0.7	WDR0.2-0.7	WFD0.4-0.7	WFD0.6-0.7	WFD0.8-0.7	WFD1.0-0.7	WFD1.2-0.7
Rated evaporation		t/h	0.15	0.2	0.4	0.6	0.8	1	1.2
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170	170	170	170	170
Input Power		KW	108	144	288	432	576	720.00	864.00
Input current		A	144	216	435	650	865.00	1080.00	1300
Rated Voltage		V	380V
Power×Group		KW×P	36KW*3	36KW*4	36KW*8	36KW*12	36KW*16	36KW*20	36KW*24
a Main steam valve diameter		DN	25	25	40	40	50	50	65
b Safety valve diameter		DN	25	25	25*2	25*3	25*4	25*5	25*6
c Inlet diamater		DN	15	15	25	25	25	40	40
d Blowoff Valve diameter		DN	25	25	25	25	25	25	25
Overall size	L	mm	1500	1500	1500	1500	1500	1500	1500
	W	mm	700	700	1400	2100	2800	3500	4200
	H	mm	1900	1900	1900	1900	1900	1900	1900
Weight		T	200	200	400	650	820	1100	1300

Electric Steam Boiler Our Factory

Wilford company is specialized in manufacturing and selling steam boiler for many years .

Our worker have experience to produce machines professional and skilled,so the machine workes well with high quality.

All parts of our machines are famous brand in China or in international,so it make sure our machine have high quality with long lifetime.

Our company provides 24 hours online services and technical supports for customers.

Product Tags:

0.15t/h industrial steam generator

108kw industrial electric boiler

0.15t/h electric boiler furnace

0.15t/H Electric Steam Generator Boiler Furnace For Steam Ironing Images
