200KG Vertical Steam Boiler Small Heat Loss High Safety For Food Sterilization

Product Categories

Zhangjiagang Wilford Thermal Co.,Ltd.

Contact Now

Name: 200KG Vertical Steam Boiler Small Heat Loss High Safety For Food Sterilization
Brand: WILFORD
Price: 1 USD

Brand Name : WILFORD

Model Number : LDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 25 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Export wooden Packing

Rated evaporation : 200kg/h

Rated working pressure : 0.7/1.0Mpa

Staturated steam temperature : 170/193

Input power : 144KW

Input current : 216A

Power*Group : 18*8/24*6

Contact Now

200KG Vertical Industrisl Electric Steam Boiler For Food sterilization

Product introduction

Vertical design electric steam boiler ,the heating elements are completely submerged in water and completely insulated-high efficiency and minimum radiation losses .

After precision calculation&design, boiler could quickly and efficiently reach work pressure. Using low heat load surface heating elements-- not easily melted or softened.

Each component with water pressure and withstand voltage test.Boiler could immediately work after connecting to power and water supply.

Nearly 100% thermal efficiency--quiet, clean, more in line with environmental requirements, No atmospheric emissions NOx (nitrogen oxides)

Parameter

Type			LDR0.15	LDR0.2	LDR0.3	LDR0.5
Project		Unit	LDR0.15	LDR0.2	LDR0.3	LDR0.5
Rated evaporation		t/h	0.15	0.2	0.3	0.5
Rated working pressure		MPa	0.7/1.0	0.7/1.0	0.7/1.0	0.8/1.0
Staturated steam temperature		℃	170/193	170/193	170/193	184/193
Input Power		KW	108	144	216	360
Input current		A	162	216	324	540
Rated pressure		V	3N AC 50Hz 380V
Power×Group		KW×P	18×6	18×8/24×6	27×8	36×10
a Main steam valve diameter		DN	25	32	32	50
b Safety valve diameter		DN	25	25	25	40
c Inlet diamater		DN	20	20	20	25
d Blowoff Valve diameter		DN	25	25	25	40
Overall size	L	mm	1100	1280/1150	1300	1580
	W	mm	950	1150/950	1200	1350
	H	mm	2050	2100/2050	2200	2600
	A	mm	-	-	1200	1200
	B	mm	-	-	500	500
	C	mm	-	-	1800	1800
Weight		kg	330/400	450/530	680/740	980/1080

Advantage

1 . Vertical design

2 . Low surface heat load electric heating element

3 . The heating element is completely insulated

4 . Small heat loss

5 . Nearly 99% thermal efficiency

6 . Efficient, energy saving

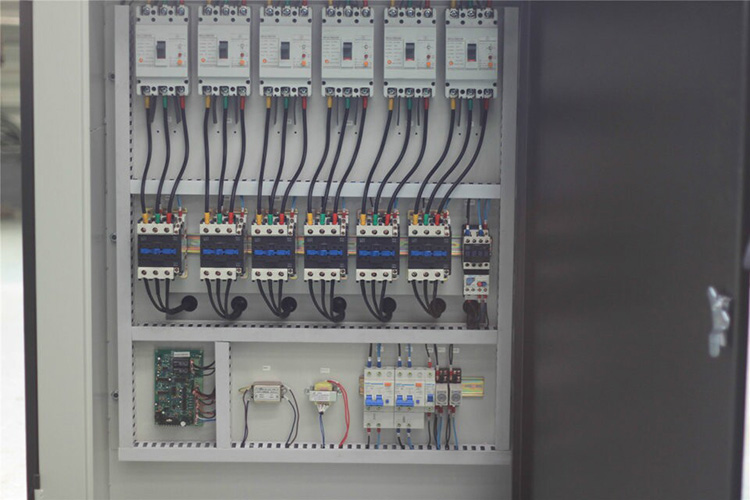

Product picture

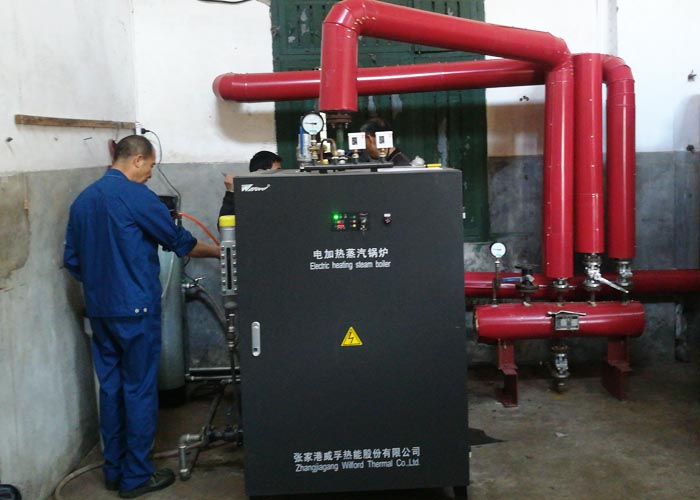

Project case diagram
