Electrical Stainless Steel Portable Industrial Steam Generator 1 Year Warranty

Name: Electrical Stainless Steel Portable Industrial Steam Generator 1 Year Warranty
Brand: WILFORD
Price: 1 USD

Brand Name : WILFORD

Model Number : LDR

Certification : ASME,CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Standard export wooden Packing

Rated evaporation : 12-125kg/h

Input power : 9-90KW

Condition : New

Fuel : electric heating

Dimension(l*w*h) : Depends

Warranty : 1 Year

Keywords : electric steam generator,china industrial boiler price

Contact Now

New design electrical stainless steel steam generator for industry

Product introduction

Each group of heating tubes is equipped with a separate contactor. When a group of heating tubes fails, it does not affect the normal use of the steam generator.

The heating element is flanged and the heating tube is made of 316L high quality stainless steel.

For the use of low-conductivity water in the medical industry, the design of the boiler water level float ball type is specially designed.

Integrated control panel, running at a glance, to avoid misuse.

The heating element is connected by concentrated beam type flange, which has simple structure and convenient replacement.

Parameter

National Inspection-free Electrical Steam Generator
Model			LDR0.012-0.7	LDR0.016-0.7	LDR0.025-0.7	LDR0.035-0.7	LDR0.05-0.7	LDR0.06-0.7	LDR0.08-0.7	LDR0.1-0.7	LDR0.125-0.7
Project		UNIT
Rated evaporation		Kg/h	12	16	25	35	50	60	80	100	125
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170	170	170	170	170	170
Input power		KW	9	12	18	27	36	40	54	72	90
Input current		A	14	18	27	41	54	60	81	108	135
Rated voltage		V	3N AC 50Hz 380V
aMain steam valve diameter		DN	15	15	15	15	15	15	15	25	25
bSafety valve diameter		DN	15	15	15	15	15	15	15	25	25
cInlet diamater		DN	15	15	15	15	15	15	15	15	15
dBlowoff valve diameter		DN	25	25	25	25	25	25	25	20	20
Overall size	L	mm	540	540	540	540	650	650	650	800	800
	W	mm	650	650	650	650	660	660	660	800	800
	H	mm	980	980	1100	1100	1380	1380	1380	1580	1580
Weight		kg	90	95	105	110	130	130	135	195	195
According to customer order requirements, the company can provide customized products for specific power supply in the world.

Feature

High quality stainless steel

Steam is clean and clean

Electrical components are of good quality and durable

Reasonable structure and simple operation

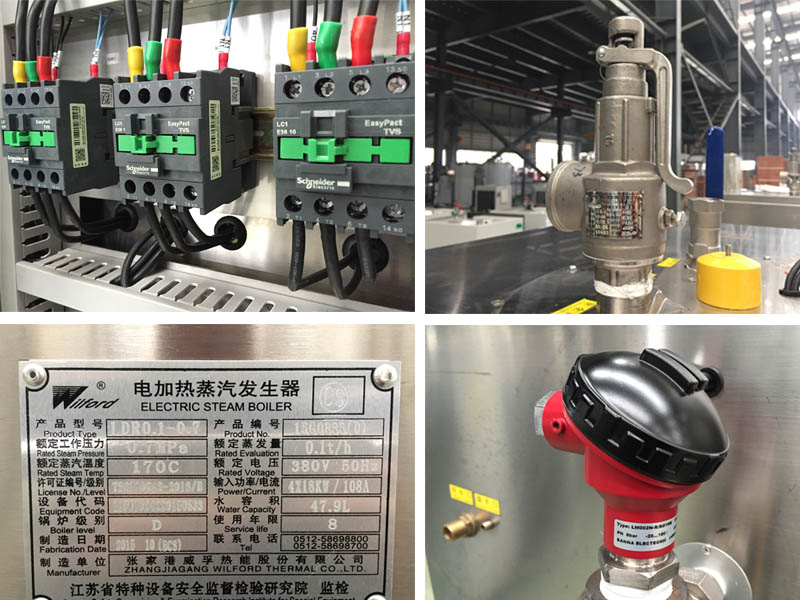

Product detail drawing

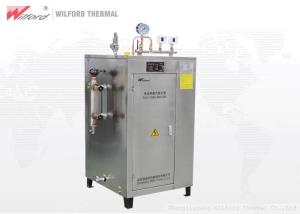

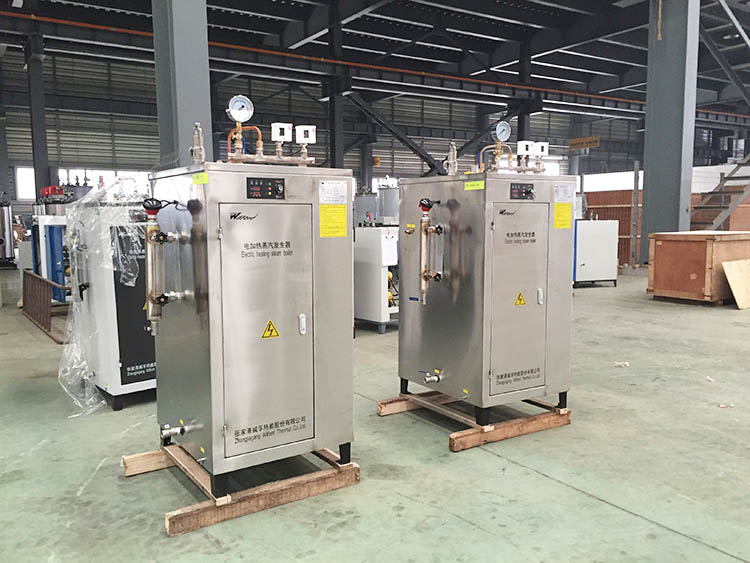

Product picture

Our Service

We provide good quality and competitive price.

Please contact me 24h freely ,I am delighted to serve you .

welcome to visit our website and our factory in china.

You can get accessories with factory price.

We will supply after service 24 hours,customer can contact us any time.

Our warranty is 12 months from the date when the Machine start using in cutomer's factory.
