0.2T / H Industrial Electric Steam Boiler

Name: 02T H Industrial Electric Steam Boiler
Brand: WILFORD
Price: 1 USD

China 0.2T / H Industrial Electric Steam Boiler wholesale

Brand Name : WILFORD

Model Number : WFD

Certification : ASME,CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Standard export wooden Packing

Rated evaporation : 0.2T/h

Rated working pressure : 0.7Mpa

Dimension(l*w*h) : Depends

Warranty : 1 Year

Keywords : industrial electric steam generator/boiler/steam boiler

Type : Natural Circulation

Output : Steam

Condition : New

Style : Vertical

Fuel : electricity,eletric

Product name : Automatic steam generator, electric steam boiler

Contact Now

Industrial Electric Steam boiler For Clean And Heating Sterilization

Product introduction

★ Adopt safety furnace liner structure, built-in high-efficiency steam-water separation device.

★ Adopt European heating tube, Incoloy800 stainless steel material (performance far exceeds 316L material) has strong anti-scale and corrosion resistance.

★ Adopting French Schneider contactor, high efficiency, sensitive action, long life and low noise.

★ Adopt Siemens circuit breaker.

★ Using German pressure gauge, high precision, reliable and stable operation.

★ The equipment is fully automatic and unattended. The operation is simple, the operation status is color liquid crystal display, and the fault display.

★ Optional additional functions such as remote start and stop, pure water and clean models.

Parameter

WFD National Inspection-free Electrical Steam Generator
Type			WDR0.15-0.7	WDR0.2-0.7	WFD0.4-0.7	WFD0.6-0.7	WFD0.8-0.7	WFD1.0-0.7	WFD1.2-0.7
Project		Unit	WDR0.15-0.7	WDR0.2-0.7	WFD0.4-0.7	WFD0.6-0.7	WFD0.8-0.7	WFD1.0-0.7	WFD1.2-0.7
Rated evaporation		t/h	0.15	0.2	0.4	0.6	0.8	1	1.2
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170	170	170	170	170
Input Power		KW	108	144	288	432	576	720.00	864.00
Input current		A	144	216	435	650	865.00	1080.00	1300
Rated pressure		V	380V
Power×Group		KW×P	36KW*3	36KW*4	36KW*8	36KW*12	36KW*16	36KW*20	36KW*24
a Main steam valve diameter		DN	25	25	40	40	50	50	65
b Safety valve diameter		DN	25	25	25*2	25*3	25*4	25*5	25*6
c Inlet diamater		DN	15	15	25	25	25	40	40
d Blowoff Valve diameter		DN	25	25	25	25	25	25	25
Overall size	L	mm	1500	1500	1500	1500	1500	1500	1500
	W	mm	700	700	1400	2100	2800	3500	4200
	H	mm	1900	1900	1900	1900	1900	1900	1900
Weight		T	200	200	400	650	820	1100	1300

Feature

High quality electric heating tube and electric heating components

Using electricity as a heat source, environmental protection and energy saving

High thermal efficiency and good steam quality

Run to realize microcomputer programmable control, easy to operate

Professional manufacturer, long service life of boiler

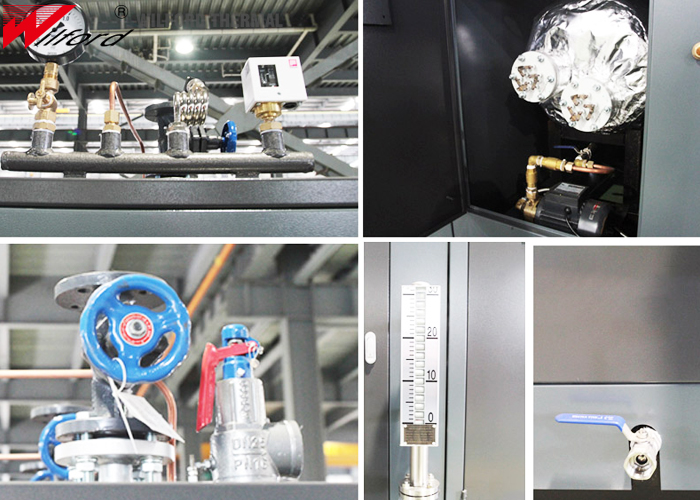

Product detail drawing

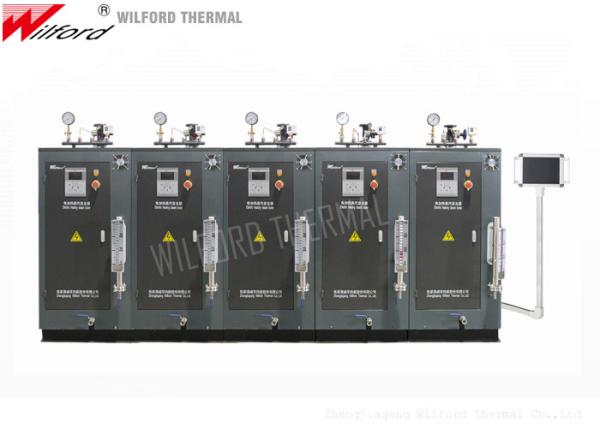

0.2T / H Industrial Electric Steam Boiler

Product Tags:

portable electric steam generator

small electric steam generator

0.2T / H Industrial Electric Steam Boiler Images
